Waterproof Conformal Coating

SCC series products mainly provide the surface protection function of PCBA circuit boards. Currently, they are used in many 3C products for long-term immersion in seawater or sweat, and provide industry-leading standards. It can provide very good underwater normal operation function. The accumulation and experience of GiantYao R&D team over the years have brought fantastic user experience to tens of millions of electronic products.

Features

• Material main components: polymer modified polyethylene polymer
• Material usage: hand coating, selective dispensing by dispensing machine
• Material viscosity can be adjusted according to customer requirements
• Material specifications: acid resistance, alkali resistance, corrosion resistance, chemical resistance, breathable (waterproof/sweat proof/seawater proof/rain proof)
• Anti-voltage breakdown capability: DC voltage 0-2000v, DC current 0-10A
• Recommended thickness: 50um consumer pcba, 100-200um industrial control board
• The film can be removed, and the coating can be applied by hand after rework
• Contains nano-color paste, you can use a highlighter to check whether it is evenly sprayed on each component
• The validity period can be adjusted according to customer requirements, usually 2 years for consumer products and 8-10 years for industrial control boards
• Material construction protection position: PCBA board component position, can also be used in semi-finished product assembly, pad position, connection seat position, external connection position

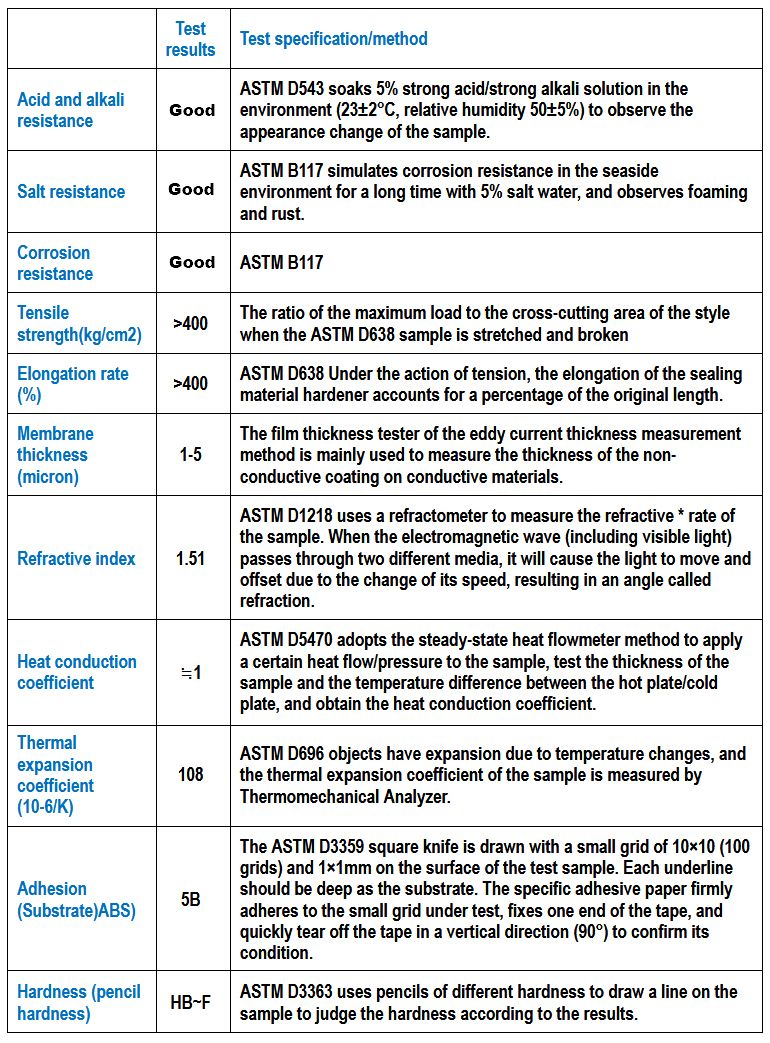

Typical Properties

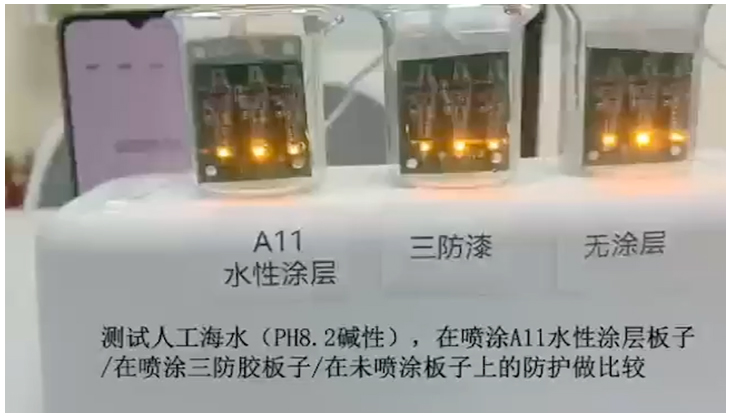

Effect of SCC coating
